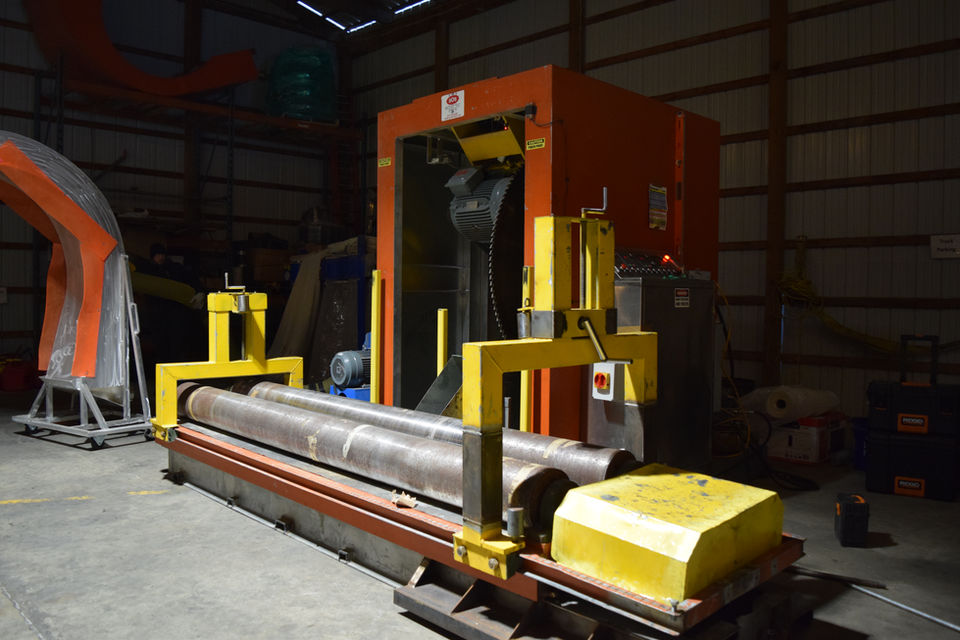

The Roll Converting

Machine

The RCM allows you to convert rolls with burnt out ends, water damage, busted edges or obsolete sizes and resize them at your facility.

•  Consistent Performance

•  Press Ready Cut

•  Minimal Airborne Dust

•  Operator Friendly

​




Specifications

I'm a paragraph. Click here to add your own text and edit me. It’s easy. Just click “Edit Text” or double click me to add your own content and make changes to the font. I’m a great place for you to tell a story and let your users know a little more about you.

More Info

Specifications & FAQ

Paper Diameter Minimum & Maximum

24" Minimum 60" Maximum



Roll Width Minimum & Maximum

12" Minimum 120" Maximum



What are the site requirements for install?

• 480 volt three phase pulling 60 amps within 50 feet of machine
• Clamp truck driver to load and remove rolls on converting machine
• 25’ x 25’ work area required



What materials can the RCM cut?

• Corrugated
• Kraft / Liner
• Medium
• Gloss / Coated • and more!



What is the production rate of the RCM?

Many factors go into this; roll widths, diameters, and materials you are running. Because of these factors, you can assume 20-40 cuts in a 10hr day with proper support (clamp truck driver). The RCM can run 24/7 with proper the proper power support - see above site requirements.



What are the dust collection system options?

There are a few different options when it comes to the dust collection system. 1. Hook it directly into your factory dust collection system. 2. Dust compactor: the RCM can hook into a duct compactor that disposes of the dust in a hockey puck shape. 3. Bag system: the bag system connects the RCM to 5 bags placed near the machine that you will have to empty from time to time.
